Peb Theem Loop Resistance Tester

Xa kev nug
Peb Theem Loop Resistance Tester
Paub meej

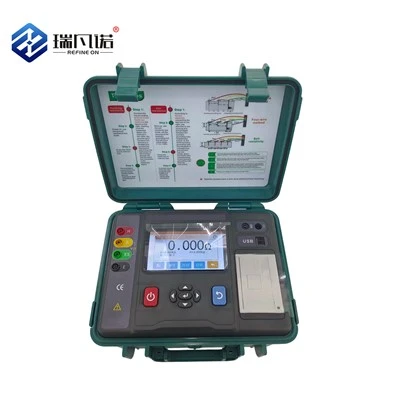

NRH60 100 Peb Theem Loop Resistance Tester yog tus kws tshaj lij peb channel ib txhij ntsuas ntsuas uas muaj cov qauv tsim hluav taws xob ruaj khov thiab ntse tib neeg lub tshuab cuam tshuam los xyuas kom muaj txiaj ntsig zoo thiab txhim kho ntawm qhov chaw ua haujlwm.
Kev faib tawm yam khoom
Resistance Tester
Share to
Hauj lwm lawm

Refine On (Hebei) Hluav Taws Xob Technology Co., Ltd. Yog hais tias koj yuav mus rau cov lag luam wholesale ntev peb theem voj tsis kam tester, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.



Peb tau tsim thiab tsim NRH60-100 peb-theem voj tiv thaiv tester tshwj xeeb rau peb-channel sim ib txhij. Ua ntej peb xa ib chav tsev tawm, peb xyuas txhua tus kom huv si-ua kom nws muaj kev nyab xeeb, raug, thiab zoo ib yam txhua lub sijhawm.



Peb siv no NRH60-100 peb-theem voj tiv thaiv tester los ntsuas kev tiv thaiv tiv thaiv rau cov keyboards, cables, thiab welds. Nws los nrog 7-inch 800 × 480 xim kov npo, yog li kev khiav hauj lwm nws yog super meej thiab yooj yim. Nws txhawb ntau lub zog tam sim no, thiab nws tuaj yeem suav cov txiaj ntsig nruab nrab tau txais. Koj yuav tau txais qhov tseeb- lub sijhawm qhia txog kev tiv thaiv, qhov hluav taws xob, tam sim no, thiab kev tiv thaiv, thiab nws yuav suab lub tswb ntawm nws tus kheej yog tias qhov kev nyeem ntawv dhau qhov kev txwv koj tau teev tseg. Muaj ib qho ua tau -hauv moos thiab cov ntaub ntawv loj nrog kev tiv thaiv hluav taws xob, yog li koj yuav tsis poob ib qho ntaub ntawv. Koj tuaj yeem xa tawm cov ntaub ntawv ntawm USB tsav, Bluetooth, lossis RS232 kev sib txuas lus-qhov no cia koj tswj nws nrog koj lub xov tooj lossis lub computer ib yam nkaus.



Khoom Parameters



Qauv

NRH 60-100

Kuaj tam sim no

50A / 100A (customizable)

Kev ntsuas ntau

0–19999μΩ

Qhov tseeb

0.5% rdg ± 10dgt

Kev daws teeb meem

0.01μΩ

Lub zog ua haujlwm

AC220V ± 10%, 50Hz ± 2%

Ua haujlwm kub

-25℃-50 degree

txheeb ze humidity

Tsawg dua lossis sib npaug li 90% RH

Qhov ntev

450mm × 250mm × 220mm

Qhov hnyav

9,9kq ua



Cov khoom siv



Peb siv NRH60-100 peb-theem voj tiv thaiv tester hauv cov chaw nres tsheb fais fab, cov chaw tsim hluav taws xob, cov khoom siv hluav taws xob thiab cov chaw tu. Nws sim peb -theem voj tsis kam rau siab thiab qis voltage hloov, cables, connectors thiab welds. Nws yog qhov tsim nyog rau kev kuaj xyuas lub Hoobkas, kev kuaj kev xa mus, kev saib xyuas niaj hnub thiab kev ntsuas lub sijhawm. Nws ua haujlwm zoo hauv tsev thiab sab nraum zoov peb-theem hluav taws xob kuaj ib puag ncig.

product-1600-1200



Yam khoom



product-1060-1298



Factory Show



001
product-800-600
001
001
d9900876-46d8-4559-8cfe-00b19e625428001
001



Cov lus nug nquag nug (FAQ)



Q: Koj puas tuaj yeem npaj cov xaj xaj sai?

A: Yog lawm, peb tuaj yeem ua kom nrawm rau cov kev xav tau ceev.

Q: Koj puas yuav xa cov duab ua ntej xa khoom?

A: Yog, peb muab cov duab / yeeb yaj duab rau kev pom zoo.

Q: Dab tsi shipping txoj kev koj muab?

A: Qhia (DHL / FedEx / UPS), huab cua freight, hiav txwv freight.

Q: Nws puas tuaj yeem ua haujlwm tsis tu ncua?

A: Yog. Nws muaj qhov ua kom txias thiab tiv thaiv thermal kom ntev - lub sijhawm ua haujlwm.

Q: Nws puas yooj yim rau kev khiav lag luam?

A: Yog. Nws siv cov xim kov npo nrog ua - hauv cov kab kos duab thiab cov lus qhia meej meej.



Cim npe nrov: Tuam Tshoj peb theem voj tsis kam tester manufacturers, lwm tus neeg, Hoobkas
